Bionova

CABIN PLUS

CABIN PLUS

Bionova Cabin & Cabin Plus are fully automatic, self-contained biological toilet systems, meaning the waste finishes composting within the unit without needing to be set aside in another position.

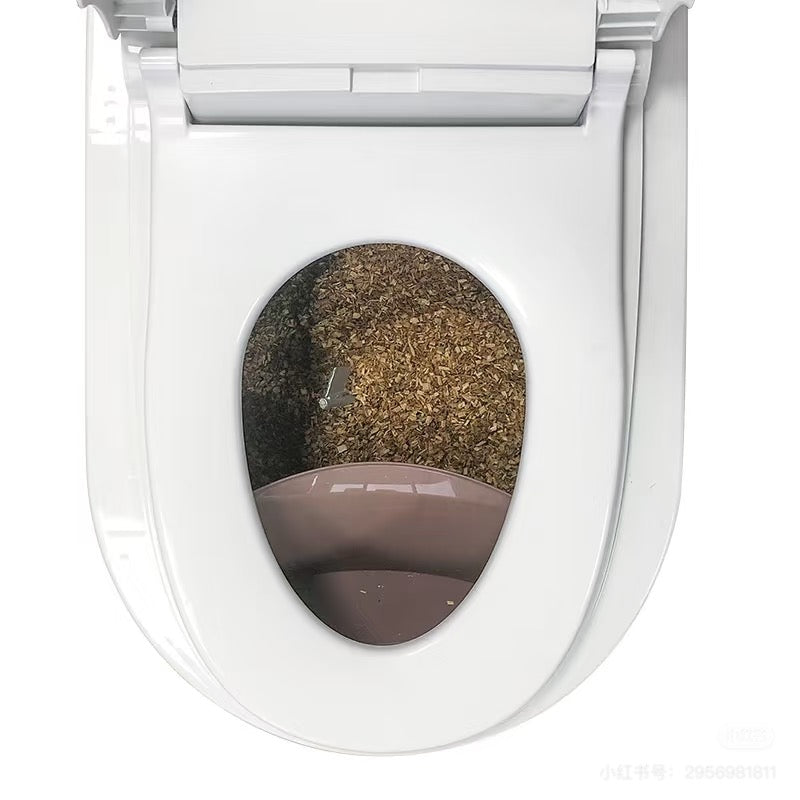

The composting process takes place using nature’s own microorganisms, without the need for any chemicals. Controlled air supply and heat, along with regular mixing of the compost, accelerate the composting process and convert toilet waste into eco-friendly humus.

The Cabin is suitable for up to 3 people for full-time use.

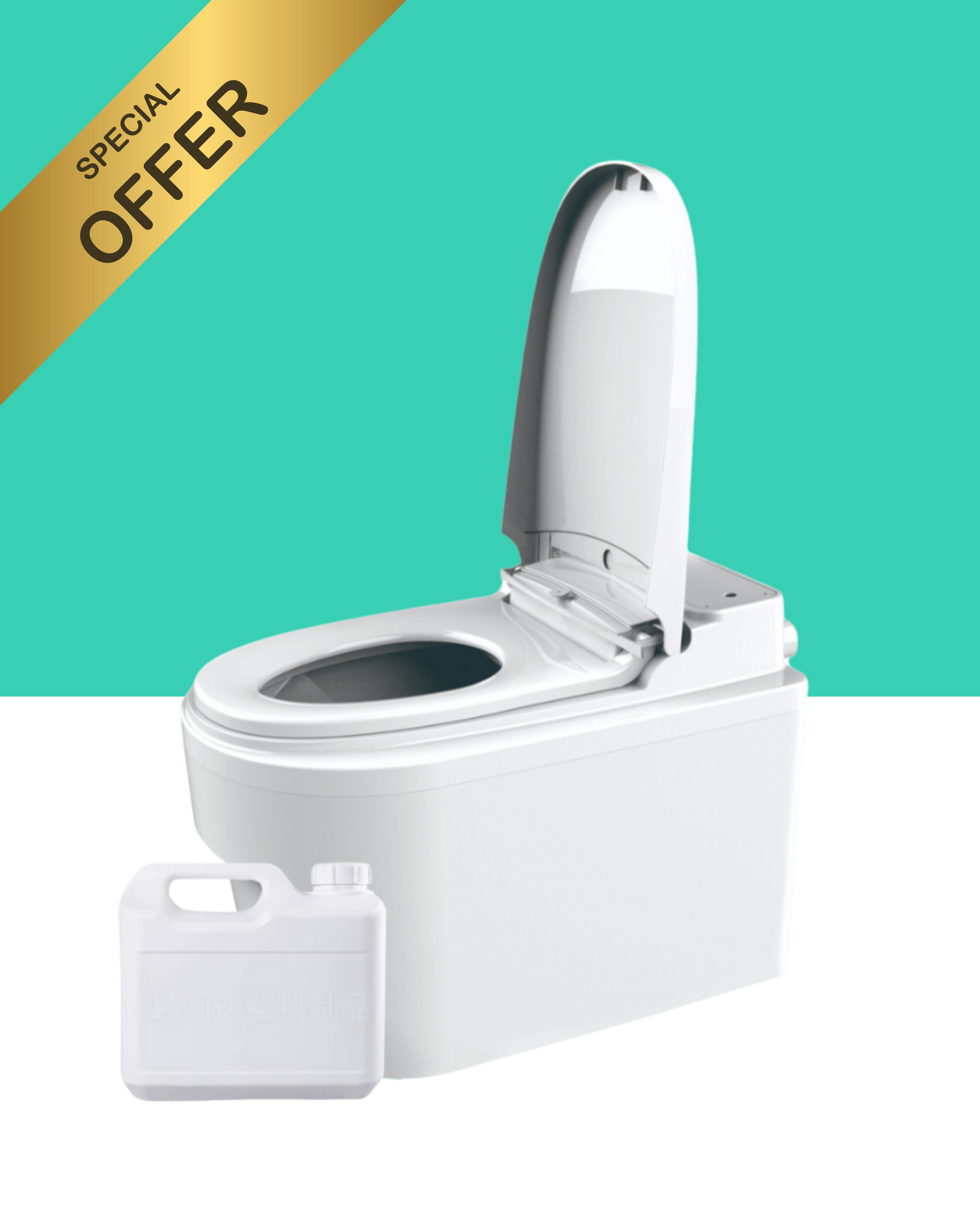

The Cabin Plus, with a urine separator, is suitable for 3-5 people for full-time use.

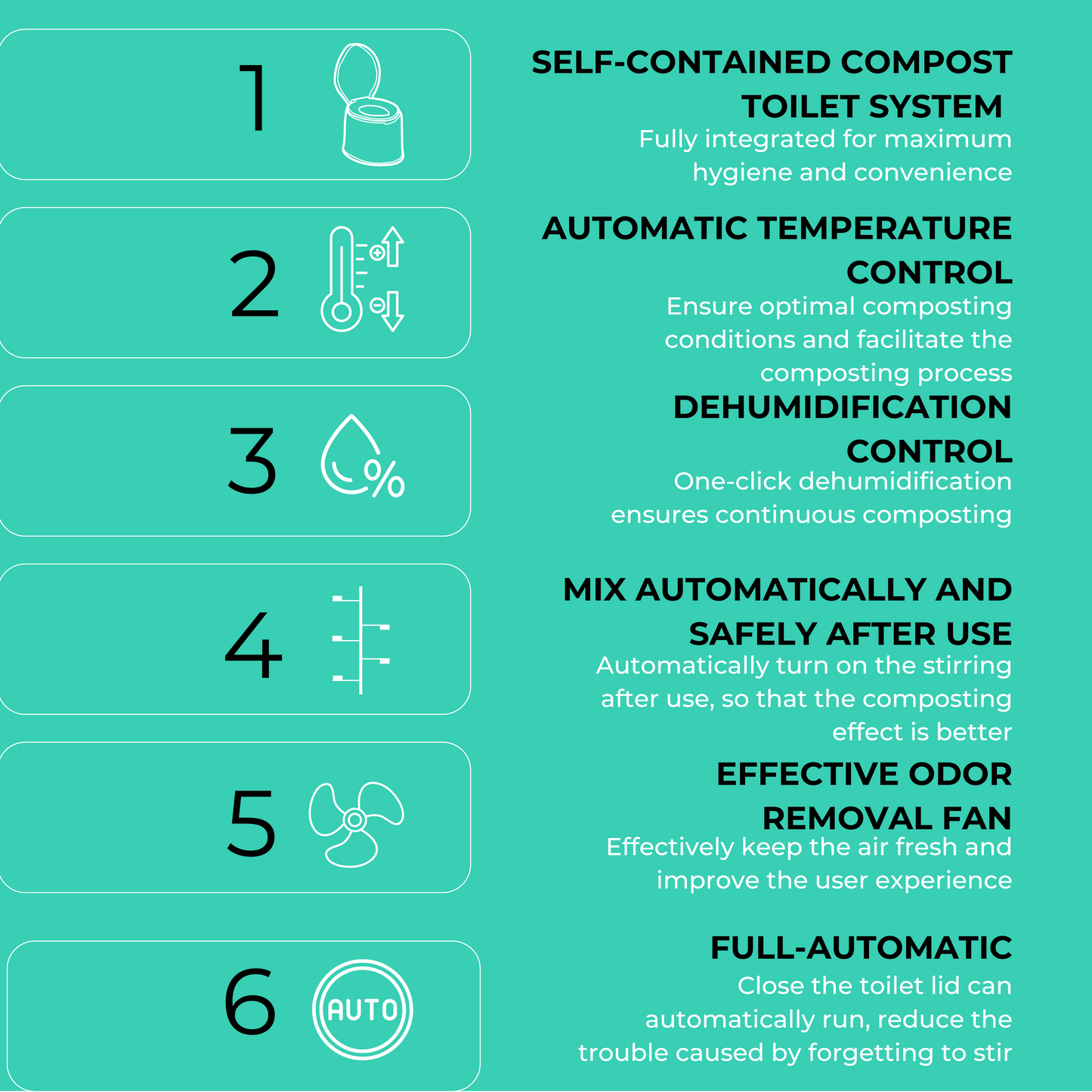

- KEY FEATURES:

1) Self-contained compost toilet systems: fully integrated for maximum hygiene and convenience.

2) Automatic temperature control: ensures optimal composting conditions and facilitates the composting process.

3) Dehumidification control: one-click dehumidification guarantees continuous composting.

4) Automatically mixes safely after use: stirring activates automatically after use, improving composting effectiveness.

5) Effective odor removal fan: keeps the air fresh and enhances user experience.

6) Fully automatic: simply close the toilet lid after use, and the toilet will automatically operate, reducing the hassle of forgetting to stir the waste.

7) Easy to install: user-friendly installation process with all necessary components included, making it a perfect DIY project.

8) Durable construction: made from high-quality, UV-resistant materials to withstand various weather conditions while ensuring longevity.

Join the movement towards sustainable sanitation and make the planet a greener place, one flush-free bathroom break at a time.

SPECIFICATIONS

1. Power Information

  • Power range: 220 - 240 V AC 50Hz
  • Power: 1700 - 2030 W
  • Motor: 12 V DC
  • Fan Voltage: 12 V DC

2.Product Dimensions and Weight Information

  • Length: 600mm
  • Width: 380mm
  • Height: 568mm
  • Seat Height: 530mm
  • Exhaust Port Center Height: 400mm
  • Air Intake Center & Ash Removal Port Height: 220mm
  • Unit Weight: 35KG
  • Ash Pan Capacity: 5L

CONTENTS OF DELIVERY

  • The Incineration Toilet x 1
  • Instruction Manual x 1
  • Bowl Liner ( 500 pcs / box ) x 1
  • The Installation Kits

There are three types of installation kits, please consult sales customer service when purchasing the product to choose the most suitable kit based your installation environment.

1. Standard Vertical Hard Pipe Kit

  • 304 Stainless Steel Rain Cap x 1
  • Smooth Sweep Tee x 1
  • 110mm Exhaust Pipe 1m x 2
  • 304 Stainless Steel Side Exhaust/Intake Guard x 1
  • 304 Stainless Steel Clamp Adjustable 100-150mm x 2
  • M4 / 12mm Countersunk Self-tapping Screw (304 Stainless Steel) x 12

2. Standard Vertical Flexible Hose Kits

  • 304 Stainless Steel Rain Cap x 1
  • 110mm Extendable Flexible Hose x 1
  • 304 Stainless Steel Side Exhaust/Intake Guard x 1
  • 304 Stainless Steel Clamp Adjustable 100-150mm x 1
  • M4 / 12mm Countersunk Self-tapping Screw (304 Stainless Steel) x 12
  • 110mm Exhaust Hard Pipe 20cm x 1

3. Side Installation Hard Pipe Kit

  • 110mm Exhaust Pipe 30cm x 1
  • 110mm Exhaust Pipe 60cm x 1
  • 304 Stainless Steel Side Exhaust/Intake Guard x 1
  • M4 / 12mm Countersunk Self-tapping Screw (304 Stainless Steel) x 10
