PHOENIX

PHOENIX

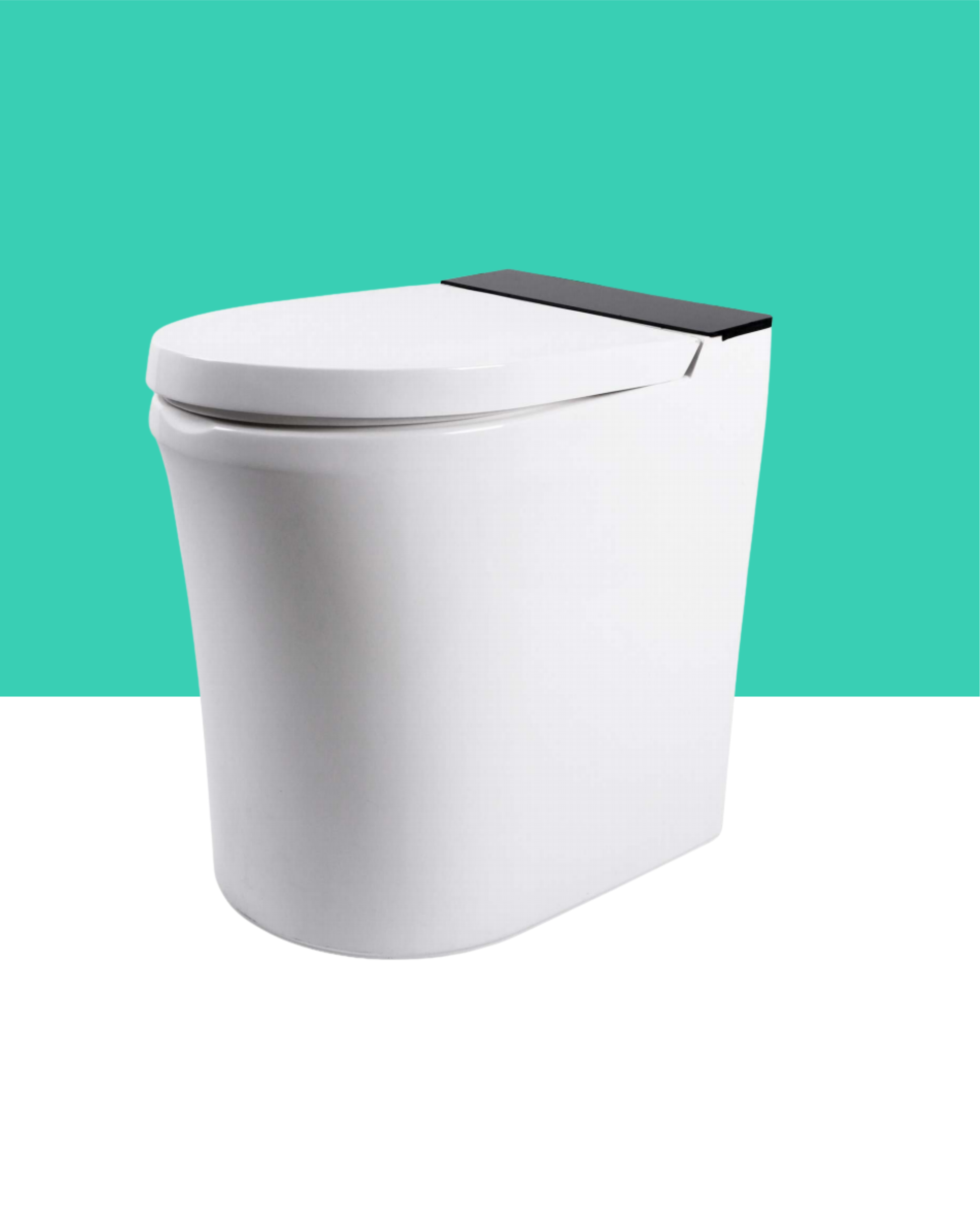

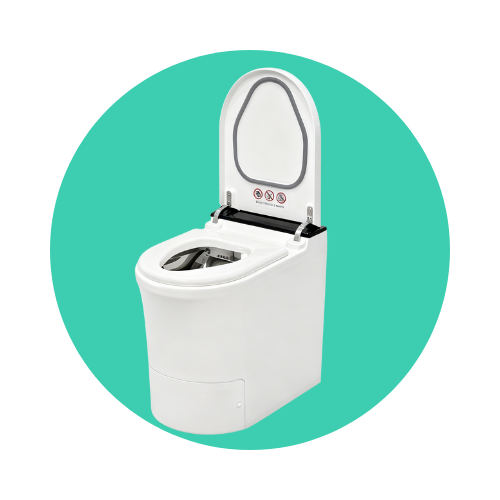

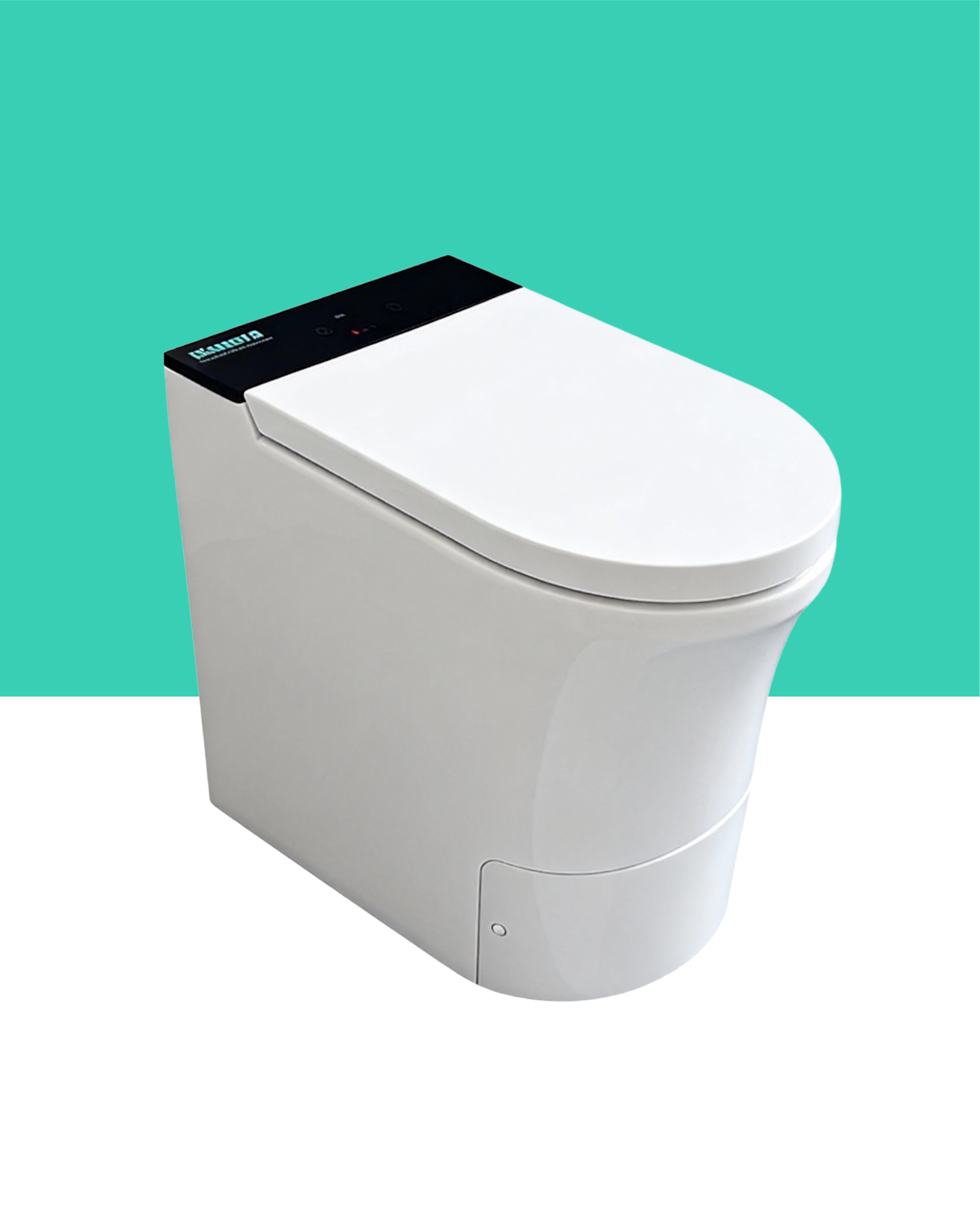

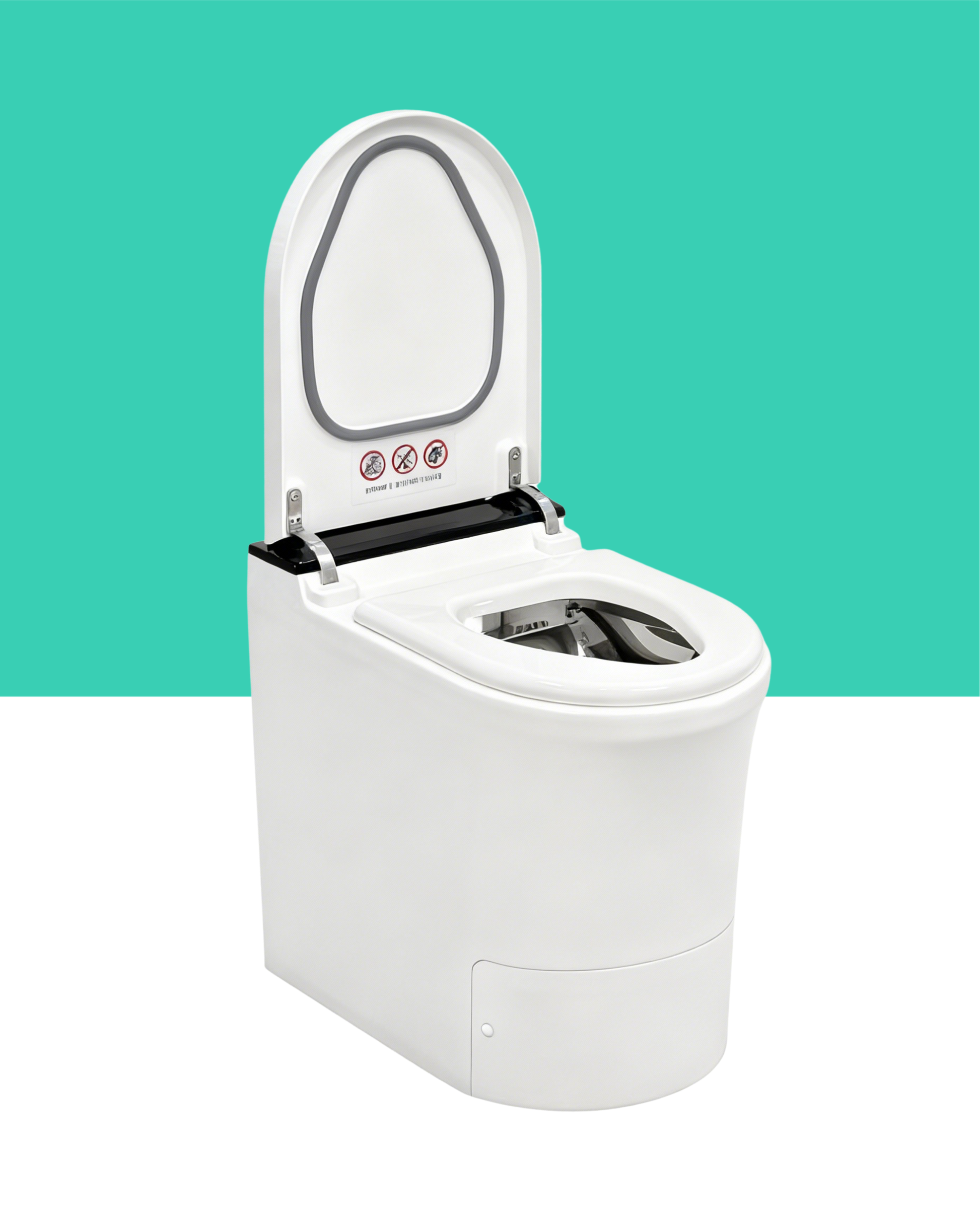

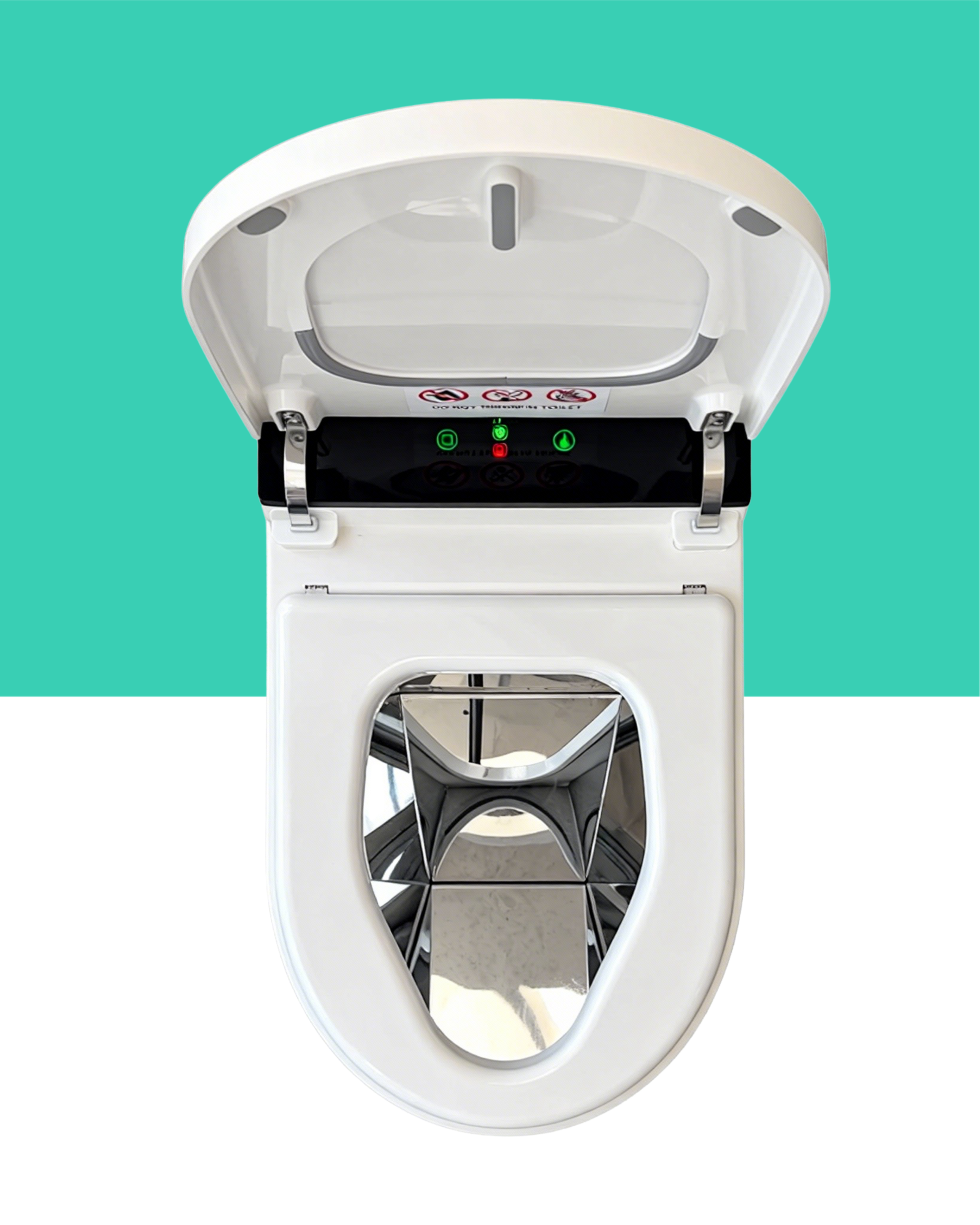

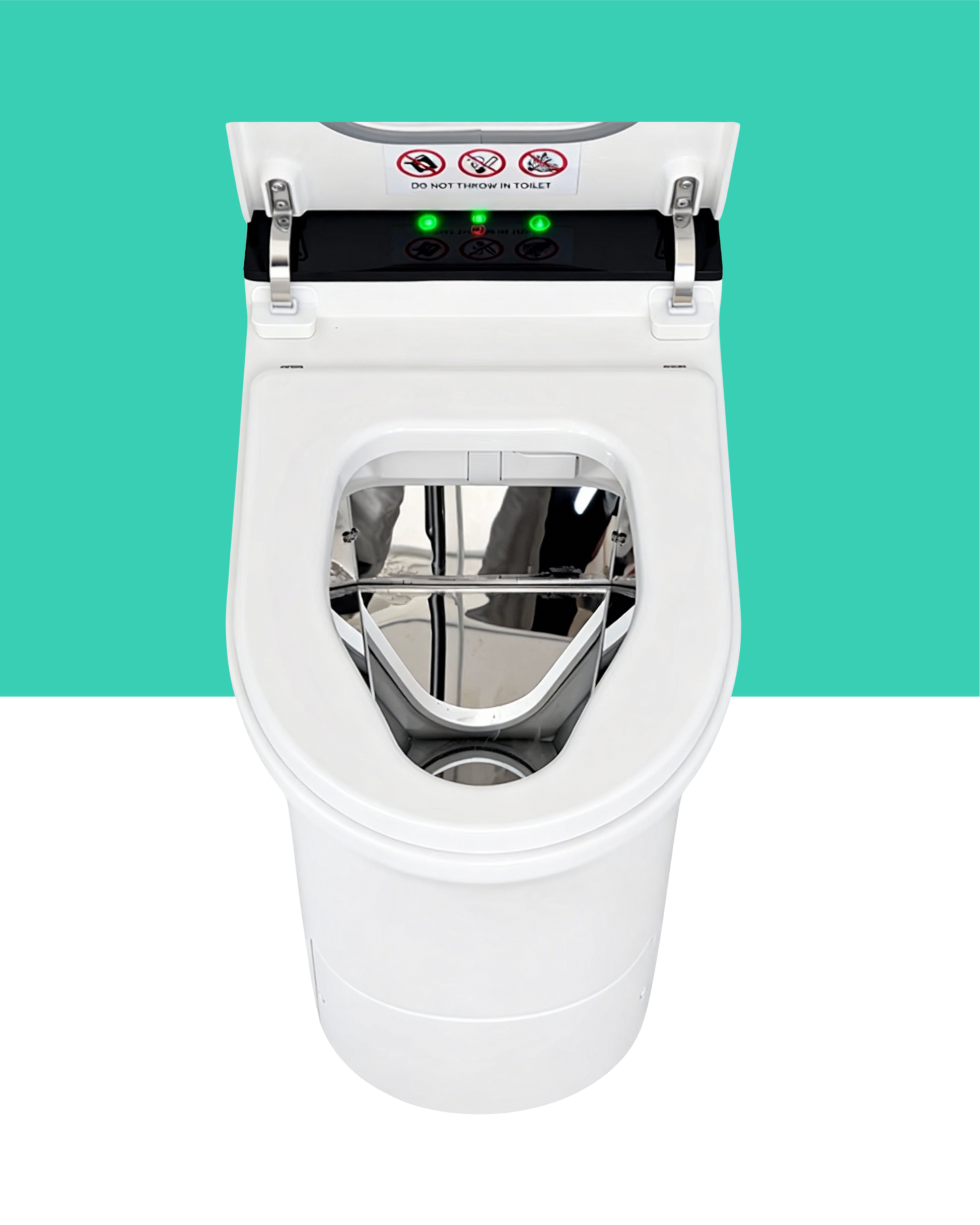

Bionova Incineration Toilet: Clean, Odorless, and Completely Waterless Waste Treatment

Phoenix Incinerating toilet operates through a sealed burn chamber, advanced thermal management, and automated safety controls.

When the user initiates the incineration cycle, waste is safely processed at high temperatures, eliminating pathogens, odors, and moisture without the need for chemicals, water, or connection to sewage infrastructure.

Key Advantage

  • True Waterless Operation
    No plumbing, no freezing risk, no chemical additives, and no maintenance of tanks or pipes.
  • Medical-grade Hygiene
    High-temperature sterilization ensures safe and odor-free waste reduction to clean ash.
  • Fully Sealed, Clean User Experience
    A closed system prevents exposure to waste during and after use.
  • Reliable Performance in Any Environment
    Safe, stable operation across a wide range of climates, including cold regions.
  • Compact and Installation-Flexible

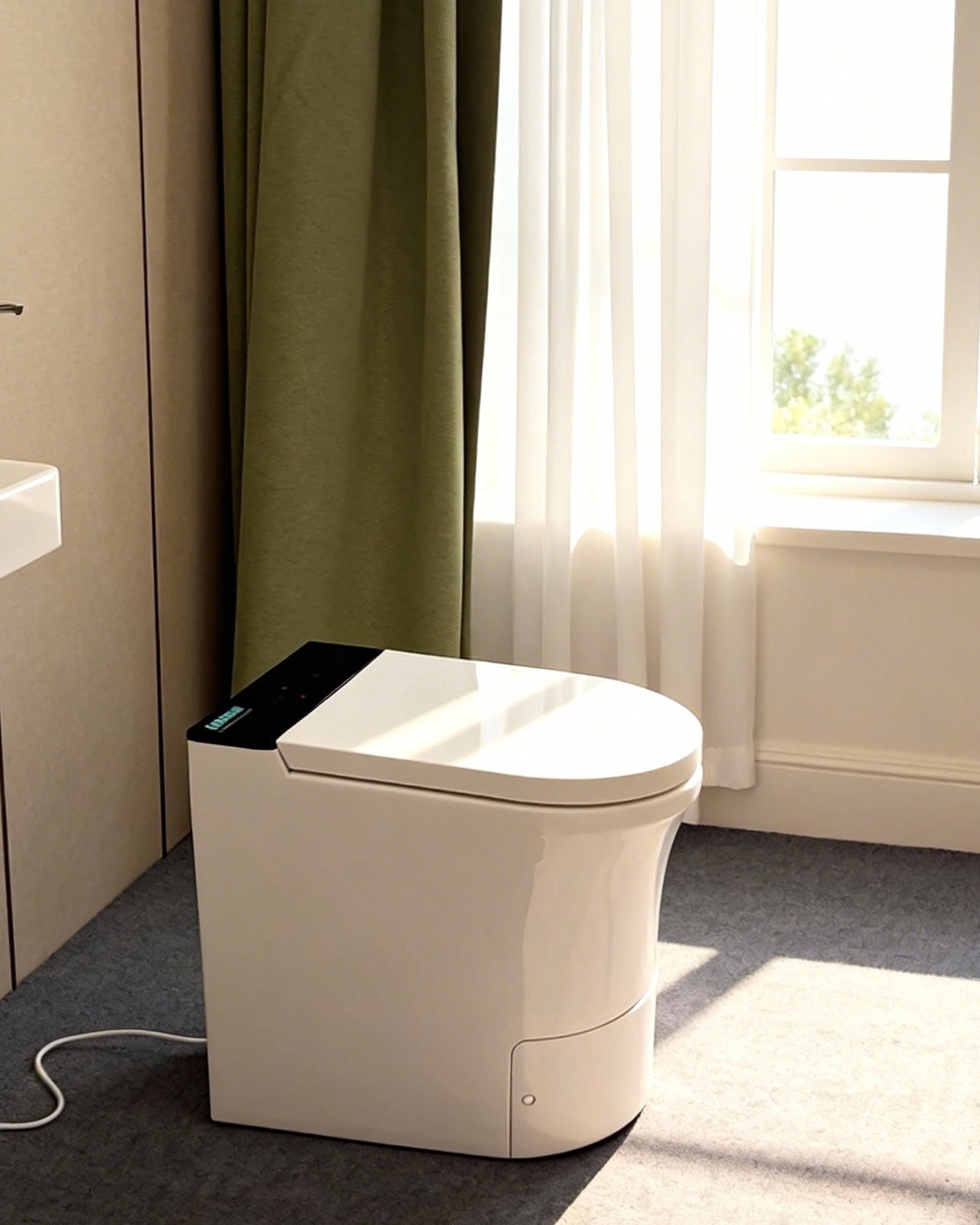

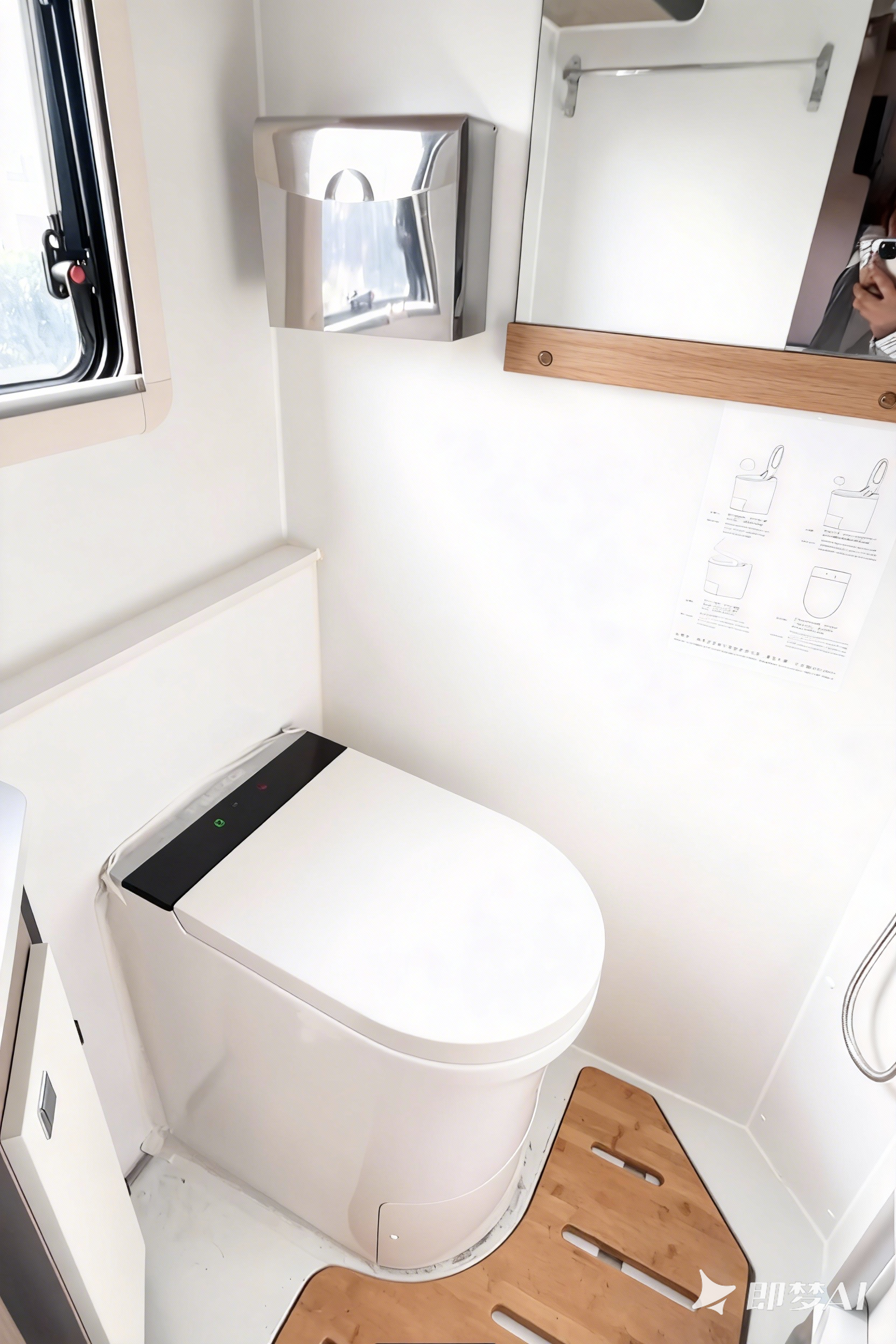

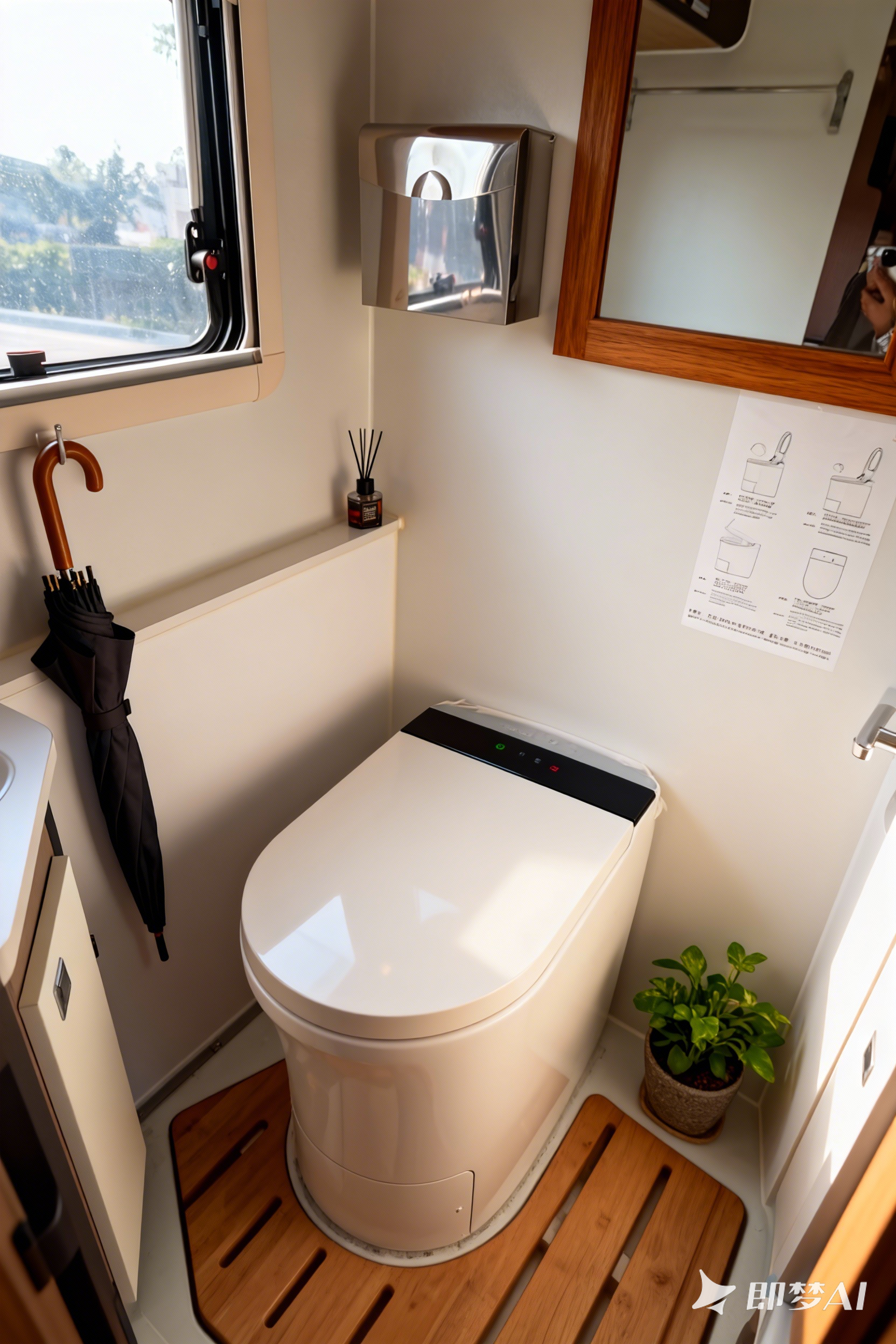

    Designed to integrate easily into tiny homes, cabins, RVs, and off-grid structures with minimal installation requirements.
  • Low Maintenance

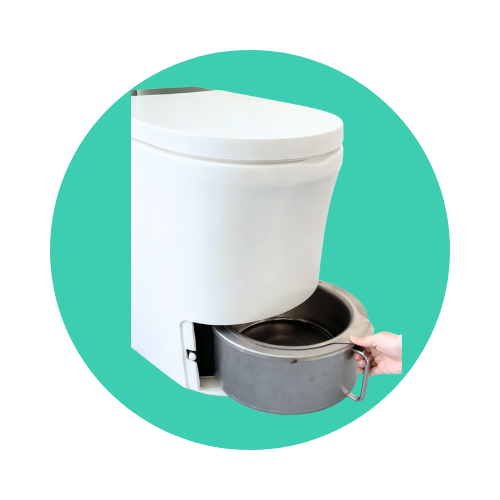

    No tank cleaning — simply empty the ash tray periodically.

It delivers a modern, convenient, and environmentally responsible solution for users seeking maximum hygiene with zero water consumption. It combines advanced engineering with user-centered design to offer dependable sanitation anywhere it is needed.

SPECIFICATIONS

1. Power Information

  • Power range: 220 - 240 V AC 50Hz
  • Power: 1700 - 2030 W
  • Motor: 12 V DC
  • Fan Voltage: 12 V DC

2.Product Dimensions and Weight Information

  • Length: 600mm
  • Width: 380mm
  • Height: 568mm
  • Seat Height: 530mm
  • Exhaust Port Center Height: 400mm
  • Air Intake Center & Ash Removal Port Height: 220mm
  • Unit Weight: 35KG
  • Ash Pan Capacity: 5L

CONTENTS OF DELIVERY

  • The Incineration Toilet x 1
  • Instruction Manual x 1
  • Bowl Liner ( 500 pcs / box ) x 1
  • The Installation Kits

There are three types of installation kits, please consult sales customer service when purchasing the product to choose the most suitable kit based your installation environment.

1. Standard Vertical Hard Pipe Kit

  • 304 Stainless Steel Rain Cap x 1
  • Smooth Sweep Tee x 1
  • 110mm Exhaust Pipe 1m x 2
  • 304 Stainless Steel Side Exhaust/Intake Guard x 1
  • 304 Stainless Steel Clamp Adjustable 100-150mm x 2
  • M4 / 12mm Countersunk Self-tapping Screw (304 Stainless Steel) x 12

2. Standard Vertical Flexible Hose Kits

  • 304 Stainless Steel Rain Cap x 1
  • 110mm Extendable Flexible Hose x 1
  • 304 Stainless Steel Side Exhaust/Intake Guard x 1
  • 304 Stainless Steel Clamp Adjustable 100-150mm x 1
  • M4 / 12mm Countersunk Self-tapping Screw (304 Stainless Steel) x 12
  • 110mm Exhaust Hard Pipe 20cm x 1

3. Side Installation Hard Pipe Kit

  • 110mm Exhaust Pipe 30cm x 1
  • 110mm Exhaust Pipe 60cm x 1
  • 304 Stainless Steel Side Exhaust/Intake Guard x 1
  • M4 / 12mm Countersunk Self-tapping Screw (304 Stainless Steel) x 10

USER MANUAL
